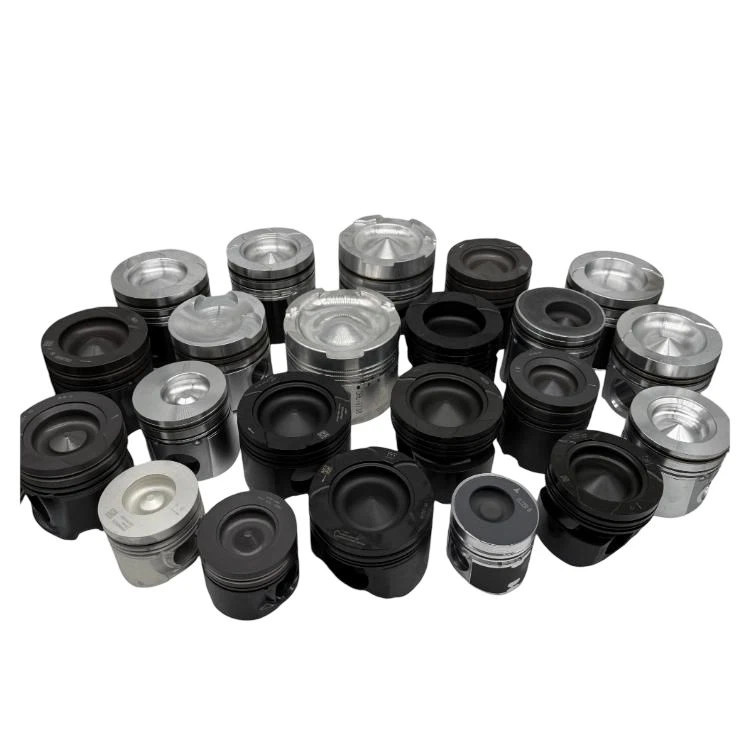

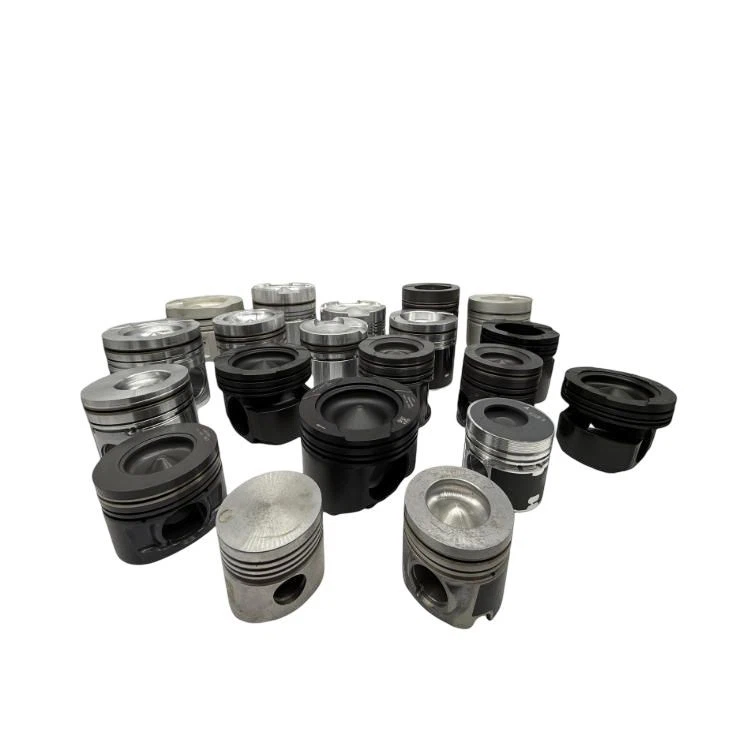

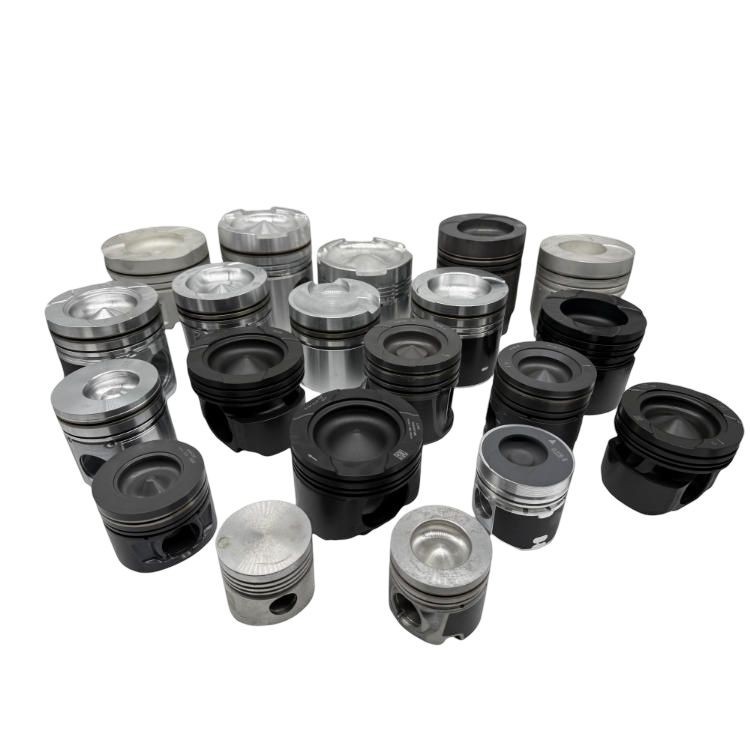

Piston For SDEC SC9D or D9 Engine
I. Product Introduction
The YUWEI Piston (Core Model: D05-101-41) is a specialized core power component designed for Shangchai SC9D and D9 series diesel engines. As a critical component in the reciprocating motion of the engine cylinder block, it forms the piston connecting rod assembly with piston rings and piston pins. This assembly directly handles gas pressure transmission and drives crankshaft rotation, serving as the core carrier that ensures engine power output, combustion efficiency, and operational stability. The piston top, cylinder head, and cylinder wall collectively form the combustion chamber, which withstands high-temperature and high-pressure conditions. As the key component enabling energy conversion, its performance and reliability directly impact the engine's power output, fuel economy, and durability. This product strictly adheres to Shangchai's original technical standards and process specifications, deeply aligning with the SC9D/D9 engines 'core characteristics of forced water cooling, high-pressure common rail, robust power output, and heavy-duty operational requirements. It is compatible with supercharged intercooled designs and has undergone rigorous quality inspections including mechanical performance testing, non-destructive testing, and dimensional accuracy calibration, making it suitable for high-intensity operations across various scenarios. The piston meets the operational demands of construction machinery, high-power generator sets, large agricultural equipment, and heavy commercial vehicles, balancing reliability and durability. It is the preferred replacement part for original factory maintenance and major overhauls, fulfilling the core assembly requirements of the engine's piston connecting rod assembly and meeting the manufacturing standards and quality requirements of Shangchai SC9D/D9 series engines.
II. Product Positioning
This product is designed as a factory-spec dedicated piston for Shangchai SC9D/D9 series engines, targeting maintenance replacement and OEM markets for medium-to-large construction machinery, high-power generators, heavy commercial vehicles, and large agricultural equipment equipped with these engines. It emphasizes "factory compatibility, dual-series compatibility, and long-term durability under heavy loads," serving operators of construction machinery, generator maintenance companies, heavy vehicle repair shops, large agricultural machinery users, Shangchai parts distributors, and special equipment operators. The product focuses on two key scenarios: First, as an OEM genuine replacement, it specifically addresses engine performance degradation, increased fuel consumption, and abnormal noises caused by piston wear, deformation, or erosion. It rapidly restores equipment performance while avoiding risks associated with improper non-OEM parts, meeting the replacement needs of wear-prone components under heavy loads and prolonged continuous operation. Second, as an OEM supplementary component, it covers both SC9D and D9 series models, addressing equipment assembly and major overhauls. It fills the gap in repair parts for Shangchai SC9D/D9 dedicated pistons, balancing practicality and cost-effectiveness to help users reduce maintenance costs, improve operational efficiency, and enhance stability. The product aligns with the high compatibility and ease of maintenance characteristics of these engine components, supporting replacement scenarios for both new and old models.
III. Model Compatibility
Core Engine Adapter
This adapter is specifically designed for the SC9D and D9 diesel engine series, comprehensively covering all power range models (155-300KW, equivalent to 211-408 horsepower, 8.82L displacement). It precisely matches the standard structural parameters of the engine, including a cylinder diameter of 114mm and stroke of 144mm, with a compression ratio range of 16.5:1 to 18:1. Compatible with turbocharged intercooled intake systems, it seamlessly integrates with the high-pressure common rail fuel injection system and the four-stroke, inline-six design of these engines. The adapter meets the emission standards of China II (Euro 2), TIER II, and some China III models, operating within a speed range of 1500-2200 r/min. It aligns with the forced water cooling, modular structure, and heavy-duty adaptation features of these engines, accommodating installation and operational requirements across multiple power variants. Additionally, it complies with the ignition sequence specifications of the SC9D/D9 series engines and can be adapted to power matching needs of specific models like the SC9D250G2. By leveraging the structural commonality of both engine series, no additional adjustments are required for seamless installation.
Product Model
Core Product Model: D05-101-41. This original Shangchai factory-standard accessory directly replaces aging or damaged pistons of the same model, offering universal compatibility with SC9D and D9 series engines across all power ranges. The model works seamlessly with Shangchai's SC9D/D9-specific piston rings and pins to form complete piston assemblies. Its precision-engineered piston-rod assembly structure, featuring a fully floating piston pin connection, requires no engine modifications for installation. This design perfectly aligns with the series' high interchangeability and ease of replacement, supporting "four-piece" (cylinder liner, piston, piston ring, piston pin) replacement scenarios. It meets stringent precision assembly requirements and is compatible with all vehicle models and equipment equipped with these two engine series.
Device scenarios
This system is designed for large and medium-sized construction machinery equipped with Shangchai SC9D/D9 engines, including loaders, excavators, rollers, and cement mixer trucks. It supports 155-300KW diesel generator sets compatible with brands like Stanfor, Ingersoll Rand, and Lunte, including standard units, automated systems, trailer-mounted power stations, and low-noise stations. Ideal for emergency power supply in hospitals, industrial production lines, and commercial complexes, it also works with heavy-duty trucks, dump trucks, and agricultural equipment such as Dongfanghong LX2204 and KAT2204 tractors, as well as green fodder harvesters. The system adapts to extreme environments like high temperatures, cold climates, high dust levels, and humidity, precisely addressing the cooling requirements of water-cooled engines. It meets heavy-load and continuous operation demands, offers strong fuel adaptability, and ensures stable performance in harsh conditions including field operations, construction sites, long-distance transport, farmland work, and municipal engineering. Additionally, it supports maintenance and replacement of older models while meeting the needs of new heavy-load equipment.
IV. Product Advantages
Factory-certified compliance with dual-series compatibility
Manufactured strictly in compliance with SAIC's original technical standards and process specifications, the components are precisely matched in material selection and dimensional accuracy to SC9D/D9 engine design standards. They seamlessly integrate with the series' mandatory water-cooled cooling system and high-pressure common rail fuel injection technology. Each batch undergoes rigorous quality control throughout the production process, eliminating dimensional deviations and material nonconformities, while meeting ISO9001/CE and other industry certification requirements. The single model supports both SC9D and D9 engine series, requiring no additional calibration after installation. It directly adapts to the engine's existing structure, ensuring operational stability and avoiding potential risks like power loss or cylinder block wear caused by non-original parts. This design aligns with the series' maintenance-friendly features and the precision matching needs of the "four matching components" assembly. Additionally, it is compatible with both new and old engine models, offering enhanced versatility to precisely match engines across different emission standards and power outputs in both series.
Structural optimization for water-cooled heavy-duty applications
To address the core operational characteristics of SC9D/D9 engines-including forced water cooling, high-pressure common rail systems, and heavy-duty operations-this design employs an optimized concave-top combustion chamber structure with valve collision avoidance pits. These features enhance air-fuel mixture formation and combustion efficiency, improve compression ratios, and ensure complete fuel combustion. The system reduces fuel consumption and exhaust emissions while adapting to turbocharger intake characteristics and meeting the precision fuel supply requirements of high-pressure common rail systems. The piston head incorporates reinforced heat dissipation structures and optimized fuel passage layouts, complemented by a closed-loop cooling system that rapidly dissipates heat generated by reciprocating motion and combustion. This prevents piston deformation and erosion caused by overheating, thereby extending service life. A precision-machined annular groove on the piston head prevents thermal seizure with cylinder walls, while the first annular groove features heat-resistant cast iron inserts to enhance wear resistance. The piston skirt's optimized medium-convex variable elliptical profile improves cylinder liner fit accuracy, reduces operational friction, and strengthens sealing performance to prevent gas leakage. The center offset of the piston pin seat hole relative to crankshaft rotation improves operational stability and reduces impact, meeting the demands of low-speed, high-torque operations.
Premium materials with excellent durability and resistance to damage
The high-strength cast aluminum material is selected to balance structural strength and lightweight requirements. It effectively reduces engine operating loads, enhances power transmission efficiency, and withstands alternating impact loads from high gas pressure and reciprocating motion. With excellent impact resistance and wear resistance, it aligns with the series 'characteristics of low-speed high torque and strong overload capacity. The material also features superior thermal conductivity for rapid heat dissipation, complementing the lightweight and thermally conductive advantages of aluminum alloy pistons. Surface nitriding heat treatment further improves hardness and wear resistance while enhancing corrosion and dust erosion resistance, making it suitable for high-dust, high-temperature, and heavy-duty environments. It supports continuous high-intensity operation of equipment, reduces maintenance frequency, and aligns with the series' core advantages of reliability and durability. The material extends piston service life and meets the installation and operational requirements of three-piston rings (two gas rings and one oil ring), ensuring sealing and oil scraping performance for prolonged continuous operation.
Wide compatibility with diverse operating conditions
This solution precisely matches the Shanghai Diesel SC9D/D9 series turbocharged intercooled engines, ensuring tight integration with engine components like cylinder blocks and piston rings. It meets diverse operational needs including heavy-duty construction machinery, continuous power generation, long-haul heavy vehicle transportation, large-scale agricultural machinery, and municipal engineering projects, while supporting equipment operation across 100KW-500KW power ranges. The system demonstrates exceptional adaptability to extreme scenarios, featuring superior low-temperature starting performance. Its forced water cooling system enables high-temperature operation without external water sources, while providing robust dustproofing, corrosion resistance, and moisture protection. Capable of operating in multiple regions and environments, it accommodates the full 155-300KW power spectrum of this engine series without additional modifications. Designed for both long-term stable operation of legacy equipment and high-intensity demands of modern heavy-duty machinery, it supports dual scenarios of maintenance replacement and original factory compatibility, ensuring long-term compliance for various emission standards.
V. Installation and Maintenance
(I) Installation Notes
(II) Key Points of Daily Maintenance
Regularly monitor engine oil level and quality, using Shangchai-specific lubricants to prevent degradation and shortages that may cause insufficient piston lubrication and excessive wear. This meets the lubrication and cooling requirements of water-cooled engines, with oil providing both lubrication and auxiliary heat dissipation, aligning with SC9D/D9 engine oil capacity maintenance needs. Periodically clean fuel filters (including coarse and fine filters) and air filters, especially for models with PSD built-in dry air filters. Clean the negative pressure dust removal system to improve oil purity and intake air quality, reducing impurities entering the cylinder block and preventing piston surface scratches and cylinder liner damage-particularly crucial for high-dust operation scenarios. Regularly inspect the water cooling system, clearing debris from cooling pipes and radiators while checking coolant levels and purity to ensure efficient heat dissipation and prevent piston overheating-a key maintenance point for water-cooled heavy-duty engines. Based on operational conditions, regularly inspect piston performance, focusing on top burn-off, ring groove wear, and skirt wear. Immediately halt operations for inspection and replacement if abnormalities are detected. Considering the series' easy maintenance characteristics, also check piston pin retaining rings to prevent axial movement.
