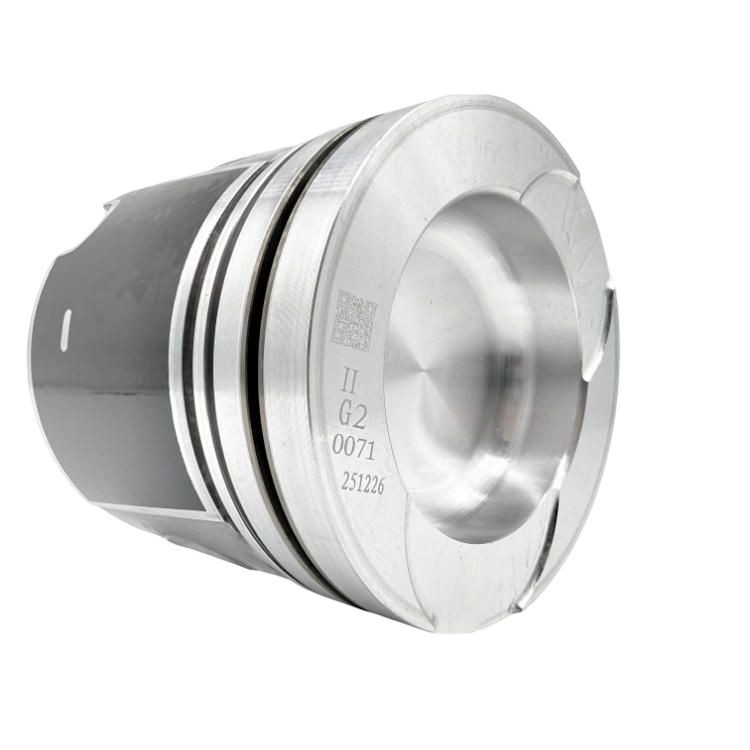

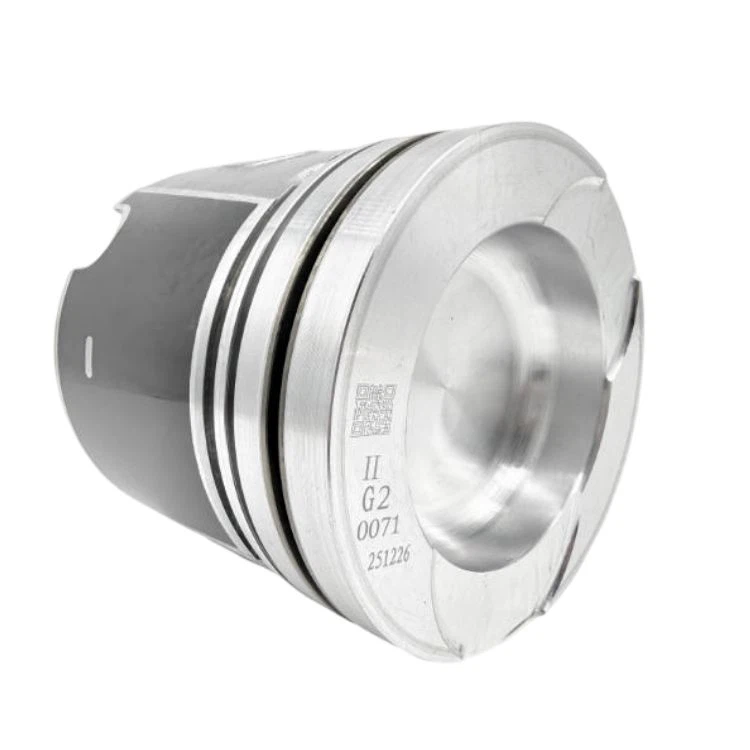

Piston For SDEC SC9D Engine
I. Product Introduction
The Yuwei Piston (Core Models: S00016602+02,9DK) is a core power component specifically engineered for Shangchai SC9D series diesel engines. As a pivotal element in the reciprocating motion of the engine cylinder block, it forms the piston connecting rod assembly with piston rings and piston pins. This assembly directly handles gas pressure transmission and drives crankshaft rotation, serving as the fundamental carrier that ensures power output, combustion efficiency, and operational stability. The piston top, cylinder head, and cylinder wall collectively form the combustion chamber, which withstands high-temperature and high-pressure conditions. As a critical component for energy conversion, its performance reliability directly impacts the engine's power output, fuel economy, and durability. This product strictly adheres to Shangchai's original technical standards and process specifications, deeply aligning with the SC9D engine's core characteristics of closed water cooling, high-pressure common rail, robust power output, and heavy-duty operational requirements. Through rigorous quality inspections including mechanical performance, non-destructive testing, and dimensional accuracy calibration, it is designed for high-intensity applications across multiple scenarios. The piston precisely matches the turbocharged intercooled and direct injection structural designs of this engine series, meeting the high-performance demands of construction machinery, power generation units, and large agricultural equipment. Balancing reliability and durability, it serves as the preferred replacement and overhaul component for original equipment, fulfilling the core assembly requirements of the piston connecting rod assembly in Shangchai SC9D series engines while complying with their manufacturing standards and quality specifications.
II. Product Positioning
This product is designed as a factory-spec dedicated piston for Shangchai SC9D series engines, targeting maintenance replacement and OEM market for medium-to-large construction machinery, high-power generators, heavy commercial vehicles, and large agricultural equipment equipped with these engines. It emphasizes "factory compatibility, dual-model compatibility, and long-term durability under heavy loads," precisely serving operators of construction machinery, generator maintenance enterprises, heavy vehicle repair shops, large agricultural machinery users, Shangchai parts distributors, and special equipment operators. The core positioning covers two scenarios: First, as a genuine OEM replacement part, it specifically addresses engine performance decline, increased fuel consumption, and abnormal noises caused by piston wear, deformation, or erosion, rapidly restoring equipment performance while avoiding risks from improper non-OEM parts. It meets the replacement needs of wear-prone components under heavy loads and prolonged continuous operation. Second, as a supplementary OEM part, it covers dual-model compatibility requirements for factory assembly and major overhauls, filling the gap in Shangchai SC9D-specific piston maintenance. Balancing practicality and cost-effectiveness, it helps users reduce maintenance costs, improve operational efficiency and stability, aligning with the high versatility and easy maintenance characteristics of this engine series. The product adapts to both new and old model replacement scenarios.
III. Model Compatibility
Core Engine Adapter
Engine-specific design for the Shangchai SC9D series diesel engines, covering the full power range (155-250KW, equivalent to 211-340 horsepower, 8.82L displacement). It precisely matches the standard structural parameters of 114mm cylinder diameter and 144mm stroke, with compression ratios between 16.5:1 and 18:1. Compatible with turbocharged intercooled intake systems, it seamlessly integrates with the high-pressure common rail fuel injection system and the four-stroke, inline six-cylinder architecture of these engines. The design meets Tier II and China II (Euro 2) emission standards, operates at 1500-2200 rpm, and aligns with the engines' forced water cooling, modular structure, and heavy-duty adaptability. It supports multiple power variants for installation and operation, adheres to the ignition sequence specifications of the Shangchai SC9D series, and ensures precise coordination between piston skirts and cylinder liners.
Product Model
Core product models: S00016602+02 and 9DK are original Shangchai factory-standard accessories designed to directly replace aging or damaged pistons of the same model. These components are adaptable to various SC9D series engines with different power outputs and configurations, demonstrating strong versatility. Each model can be paired with Shangchai's SC9D-specific piston rings and pins to form complete piston assemblies, precisely matching the engine's piston-rod linkage structure. The fully floating piston pin connection eliminates the need for engine modifications, fully leveraging the series' high compatibility and easy replacement design. This makes them ideal for "four-piece" (cylinder liner, piston, piston ring, and piston pin) replacement scenarios and meets the precision assembly requirements of engines.
Device scenarios
This system is designed for large and medium-sized construction machinery equipped with Shangchai SC9D engines, including loaders, excavators, rollers, and cement mixer trucks. It also supports 155-250KW diesel generator sets (compatible with brands like Stanford, Ingersoll Rand, and Lante, including standard units, automated systems, trailer-mounted power stations, and low-noise stations), commercial vehicles such as heavy trucks and dump trucks, and agricultural machinery including Dongfanghong LX2204, LX2004 tractors, and KAT2204 wheeled tractors. The system operates effectively in extreme environments like high temperatures, cold climates, high dust levels, and humidity, precisely addressing the cooling requirements of forced water-cooled engines. It meets the demands of heavy-duty, continuous operation, with strong fuel adaptability for stable performance in harsh conditions such as field operations, construction sites, long-distance transport, and agricultural work. Additionally, it facilitates maintenance and replacement of older models while supporting new heavy-duty equipment.
IV. Product Advantages
Factory-certified compliance with precise matching
Manufactured strictly in compliance with SAIC's original technical standards and process specifications, the components are precisely matched in material selection and dimensional accuracy to SC9D engine design requirements. The system seamlessly integrates the engine's mandatory water-cooled cooling structure with the high-pressure common rail fuel injection system. Each batch undergoes comprehensive quality inspection to eliminate dimensional deviations and material nonconformities, meeting ISO9001/CE and other industry certification standards. The two models precisely correspond to different SC9D series variants, requiring no additional calibration after installation. They directly adapt to the engine's original structure, ensuring operational stability while avoiding potential risks like power loss and cylinder block wear caused by non-original parts. This design aligns with the series' maintenance-friendly features and the "four matching" assembly requirements, demonstrating enhanced versatility for both new and existing engine models.
Structural optimization for water-cooled heavy-duty applications
To address the core operational characteristics of SC9D engine's forced water cooling, high-pressure common rail, and heavy-duty operation, an optimized concave-top combustion chamber structure with valve collision avoidance pits is adopted. This design improves air-fuel mixture formation and combustion efficiency, enhances compression ratio, and ensures complete fuel combustion, thereby reducing fuel consumption and exhaust emissions while adapting to the fuel injection characteristics of high-pressure common rail systems. The piston head features reinforced heat dissipation structures and optimized fuel passage layouts, complemented by the engine's closed-loop cooling system to rapidly dissipate heat generated by reciprocating motion and combustion. This prevents piston deformation and erosion caused by overheating, extending service life. A fine annular groove is machined on the piston head to prevent thermal seizure with cylinder walls, while the first annular groove incorporates heat-resistant cast iron inserts to improve wear resistance. The piston skirt adopts a medium-convex variable elliptical profile design to enhance precision fit with cylinder liners, reduce operational friction, and strengthen sealing performance to prevent gas leakage. The center of the piston pin seat hole is offset toward the crankshaft rotation direction, improving operational stability and reducing impact.
Premium materials with excellent durability and resistance to damage
Crafted from high-strength cast aluminum, this design balances structural integrity with lightweight performance. It effectively reduces engine load while enhancing power transmission efficiency, with exceptional impact resistance and wear resistance to withstand alternating shock loads from high-pressure gas and reciprocating motion. The material perfectly matches the series 'low-speed high-torque and overload-capacity requirements, while its superior thermal conductivity ensures rapid heat dissipation-leveraging aluminum's lightweight and efficient heat transfer properties. Nitriding heat treatment further increases surface hardness and wear resistance, while improving corrosion and dust resistance for high-pollution, high-temperature, and heavy-duty environments. Designed for continuous high-intensity operation, it reduces maintenance frequency, aligning with the series 'core advantage of reliability and durability. The piston's extended service life is supported by its three-ring configuration (two gas rings and one oil ring), ensuring optimal sealing and oil scraping performance.
Dual-type compatibility with wide operating conditions adaptation
Covering two core models, this solution precisely matches the Shangchai SC9D series turbocharged intercooled engines, ensuring tight integration with engine components like cylinder blocks and piston rings. It meets diverse operational needs including heavy-duty construction machinery, continuous power generation for generator sets, long-haul heavy vehicle transportation, and field operations for large agricultural machinery. The system demonstrates exceptional adaptability across extreme scenarios, featuring superior low-temperature starting performance. Its forced water cooling system enables high-temperature operation without external water sources, while providing robust dustproofing, corrosion resistance, and moisture protection. Compatible with 155-250KW power ranges across multiple regions and environments, it requires no additional adaptation. This solution supports both long-term stable operation of legacy models and high-intensity demands of modern heavy-duty equipment, catering to both maintenance replacement and OEM compatibility needs. It also aligns with the precise fuel supply characteristics of high-pressure common rail systems.
V. Installation and Maintenance
(I) Installation Notes
(II) Key Points of Daily Maintenance
Regularly monitor engine oil level and quality, using Shangchai's dedicated lubricant to prevent degradation and shortages that could cause insufficient piston lubrication and excessive wear. This meets the lubrication and cooling needs of water-cooled engines, with the SC9D 27L oil capacity specifically designed for maintenance. Clean fuel filters (both coarse and fine) and air filters periodically, especially for models with PSD built-in dry air filters. Maintain the negative pressure dust removal system to improve oil purity and intake air quality, reducing contaminants entering the cylinder block and preventing piston surface scratches – essential for high-dust environments. Inspect the water cooling system regularly, clearing debris from pipes and radiators while checking coolant levels and purity to ensure efficient heat dissipation and prevent piston overheating. These are core maintenance points for water-cooled heavy-duty engines. Based on operational conditions, monitor piston performance, focusing on top burn-off, ring groove wear, and skirt wear. Replace any abnormalities immediately. Given the series' easy maintenance characteristics, also check piston pin retaining rings to prevent axial movement.
