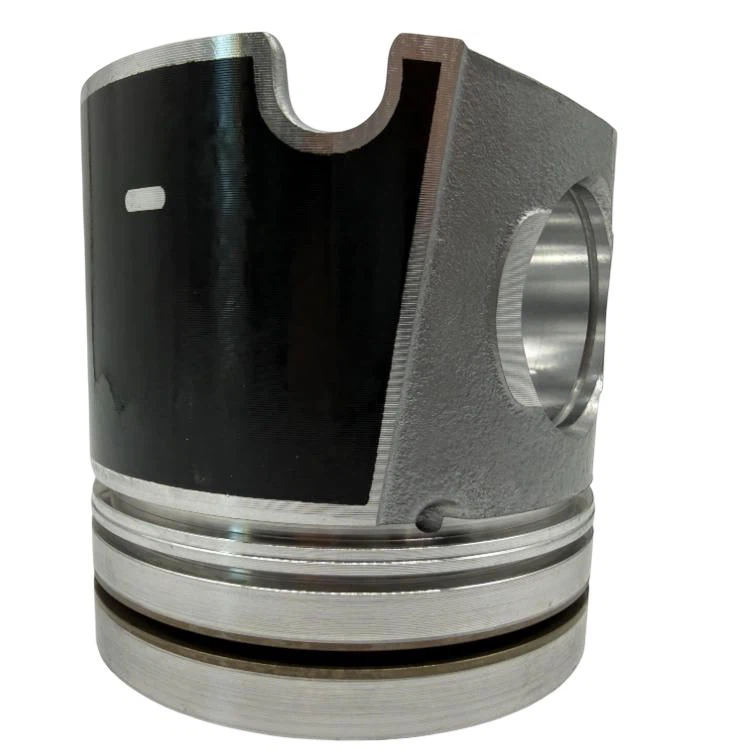

Piston For DEUTZ TBD226B Engine

I. Product Introduction

The Yuwei piston (Model: 13038398, TBD226BL-8398) is a core power component specifically engineered for the Deutz TBD226B series diesel engines. As a pivotal element in the engine's reciprocating motion, it directly handles gas pressure transmission and drives crankshaft rotation, serving as the fundamental carrier that ensures power output, combustion efficiency, and operational stability. This product strictly adheres to Deutz's original manufacturing standards, aligning with the structural design and operational characteristics of the TBD226B series. Through rigorous quality inspections, it is compatible with heavy-duty applications across various scenarios, meeting the high-intensity demands of construction machinery, power generation units, marine auxiliary equipment, and specialized equipment. Balancing reliability and durability, it provides robust support for long-term stable engine operation, making it the preferred replacement and maintenance component for original equipment.

II. Product Positioning

This product is designed as an original factory specification piston for the Deutz TBD226B series engines, targeting maintenance replacement and OEM markets for construction machinery, generator sets, marine auxiliary equipment, and special-purpose machinery equipped with these engines. Balancing high quality and compatibility, it serves operators of construction machinery, generator maintenance companies, marine repair service providers, Deutz parts distributors, and special-purpose equipment users. The product focuses on two key scenarios: First, as an OEM replacement part, it addresses engine performance degradation, increased fuel consumption, and abnormal noises caused by piston wear or damage, enabling rapid restoration of equipment performance. Second, as an OEM supplementary component, it meets the needs of equipment assembly and overhauls, filling the gap in mid-to-high-end Deutz dedicated piston maintenance solutions. Combining practicality and cost-effectiveness, it helps users reduce operational costs and enhance equipment efficiency.

III. Model Compatibility

Core Engine Adapter

This specialized adapter is designed for the TD226B series diesel engines, covering all power ratings of the TD226B model. It accommodates engine specifications with 100mm cylinder diameter and 120mm stroke (aligning with the series 'standard dimensions), compatible with both naturally aspirated and turbocharged intake systems. The adapter seamlessly integrates with the engine's fuel injection system, meeting China National Standard II (Euro 2) emission requirements, and supports the installation and operation of TD226B engines across multiple power variants.

Product Model

Core product models: 13038398 and TBD226BL-8398 are original Deutz factory-standard components. These parts directly replace worn or damaged pistons of the same model and work seamlessly with Deutz TBD226B-specific piston rings and pins to form complete piston assemblies. They precisely match the piston-rod assembly structure of this engine series, requiring no additional modifications for assembly.

Device scenarios

Designed for heavy-duty equipment including loaders, excavators, and rollers powered by Deutz TBD226B engines, as well as diesel generators and marine auxiliary systems, this solution also supports specialized machinery. Capable of operating in extreme conditions like high temperatures, extreme cold, or dusty environments, it meets the demands of heavy-load and continuous operation. With strong fuel adaptability, it ensures stable performance even in harsh working scenarios.

IV. Product Advantages

Factory-quality, compliant and reliable

Manufactured strictly in compliance with Doitz's original technical standards and process specifications, the components are precisely matched in material selection and dimensional accuracy to the TBD226B series engine design standards. Each batch undergoes rigorous mechanical performance testing, non-destructive testing, and dimensional calibration to eliminate dimensional deviations and material nonconformities, ensuring full compliance with industry certification requirements. The system requires no additional calibration after installation, seamlessly integrating with the engine's existing structure to guarantee operational stability while preventing potential risks such as power loss and cylinder block wear caused by non-original components.

Structural optimization, heat dissipation and wear resistance

The optimized combustion chamber design ensures complete fuel combustion, enhancing engine efficiency and power output while reducing fuel consumption and exhaust emissions. The piston head features an improved design with an efficient cooling system that rapidly dissipates heat from reciprocating motion and combustion, preventing overheating-induced deformation or erosion to extend service life. The piston skirt's irregular profile improves cylinder liner fit precision, minimizing operational friction and wear rates.

Premium materials with excellent durability and resistance to damage

The design employs high-strength alloy materials (selectable 35CrMo alloy structural steel or ZL101 forged aluminum alloy, adaptable to operational conditions), balancing structural strength with lightweight requirements. This configuration not only reduces engine operational load and enhances power transmission efficiency but also withstands alternating impact loads from high-pressure gas and reciprocating motion, demonstrating exceptional impact resistance and wear resistance. The surface undergoes specialized heat treatment (e.g., nitriding) to further improve hardness and wear resistance, ensuring continuous high-intensity operation of equipment and minimizing maintenance frequency.

Strong adaptability and operational compatibility

The fuel system and transmission structure of the Doitz TBD226B series engine are precisely matched, ensuring tight integration with components like the engine block and piston rings. This design optimizes the engine's low-speed high-torque performance and overload capacity, meeting diverse operational needs such as heavy-duty construction machinery, continuous power generation, and stable auxiliary engine operation in ships. With exceptional low-temperature starting performance, robust dustproofing, and corrosion resistance, it adapts to extreme working conditions across multiple environments and regions.

V. Installation and Maintenance

(I) Installation Notes

Before installation, ensure the engine is completely shut down and cooled to below 40°C. Disconnect all power supplies and pipelines, inspect the piston surface for scratches, deformations, cracks, or other defects, and clean the cylinder block of carbon deposits, oil residue, and debris to ensure a clean installation surface. Verify the piston's orientation and model, then install it strictly according to the Doitz TBD226B engine assembly specifications to prevent misalignment of the combustion chamber structure, which could compromise combustion efficiency. When installing piston rings, use specialized tools and follow the correct installation sequence. Position the rings with 90° to 120° offset from the opening to avoid overlap and ensure proper sealing. Avoid violent hammering during assembly to prevent piston deformation or damage. After assembly, perform a piston seal test (inflating to 4-5 bar and holding for 30 minutes) to confirm no leaks and ensure compliance with engine operational standards.

(II) Key Points of Daily Maintenance

Regularly monitor engine oil level and quality, using Deutz's specialized oil to prevent degradation or depletion that could cause insufficient piston lubrication and excessive wear. Periodically clean the fuel and air filters to improve oil purity and intake air quality, reducing impurities entering the cylinder block and avoiding piston surface scratches or cylinder liner damage. Based on operational conditions, regularly inspect piston performance, focusing on top burnout, ring groove wear, and skirt wear. Immediately halt operation for inspection and replacement if abnormalities are detected.
