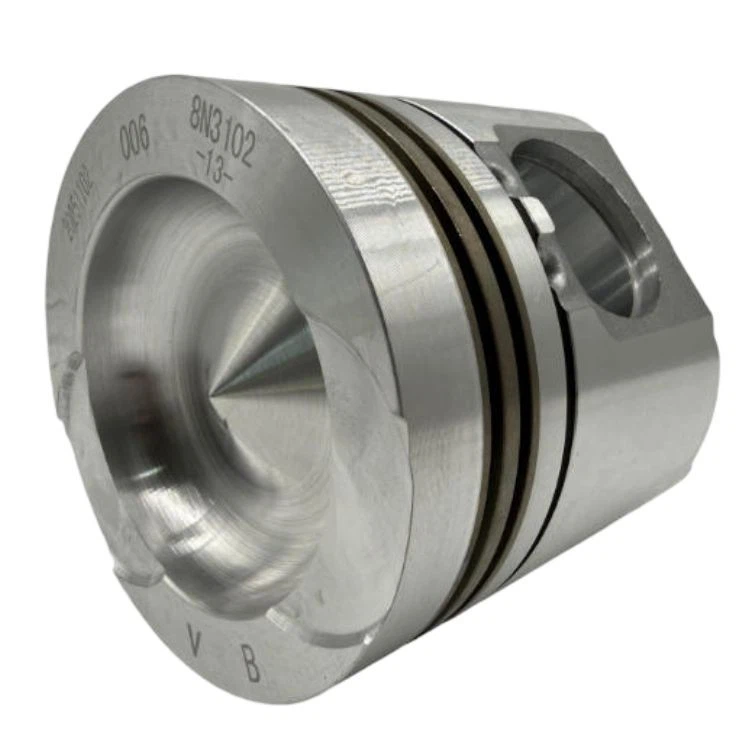

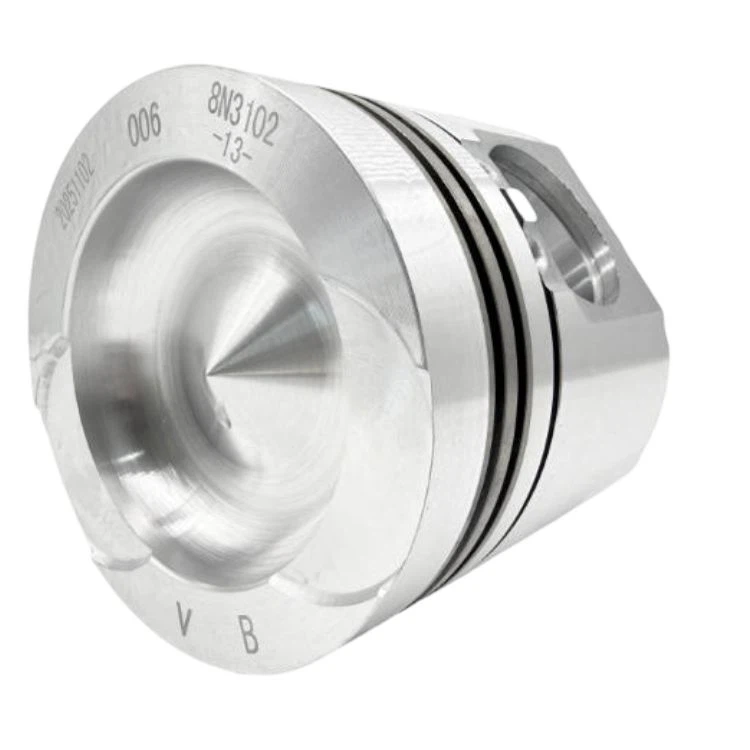

Yuwei Piston 8N-3102 (For Caterpillar C9 Engine) - Brief Introduction

I. Product Introduction

Yuwei Piston 8N-3102 is a core power part specially developed for Caterpillar C9 engines. As a key component of the engine, it ensures power transmission, combustion chamber sealing and high-temperature conduction. Complying with Caterpillar's original standards, it uses high-quality aluminum alloy and precision processing, which can perfectly replace original parts and is widely used in construction machinery, heavy transportation and power generation equipment equipped with Caterpillar C9 engines.

II. Product Positioning

It is a high-end dedicated piston for Caterpillar C9 engines, targeting authorized Caterpillar maintenance service providers, large engineering machinery operation and maintenance enterprises, and individual maintenance practitioners. It features original quality, precise adaptation, high cost performance and long service life, filling the market gap between original quality and affordable price.

III. Model Adaptation

Core Adaptation Model

Mainly adapted to Caterpillar C9 series engines (compatible with all models, including construction machinery such as Caterpillar 336D2L), it can be directly installed without additional modification.

Core Specifications

Model: 8N-3102 (OE No.: 8N3102); Material: High-strength aluminum alloy; Diameter: 120.65mm; Structure: Pin piston design with matching retaining rings; Certification: ISO9001, ISO/TS16949; Warranty: 12 months.

Adaptation Scenarios

Suitable for all equipment with Caterpillar C9 engines, especially for maintenance and replacement under long-term high-load and harsh working conditions, with 100% adaptability.

IV. Product Advantages

High-quality material

High-strength aluminum alloy with special heat treatment, high temperature resistance and wear resistance, service life increased by more than 30%.

Precise adaptation

Micron-level dimensional accuracy, direct installation without grinding or modification, easy and efficient.

Stable performance

Optimized structure promotes full fuel combustion, improving fuel economy and power stability.

High cost performance

60%-70% of the original piston price, with 12-month warranty and perfect after-sales service; customized services available.

Strict quality control

99.9% qualification rate, complying with environmental standards and compatible with original parts.

V. Installation and Maintenance

(I) Installation Specifications

Check the piston and supporting parts for defects before installation; clean the cylinder liner and check its wear.
Use special tools for installation; apply appropriate engine oil to the piston skirt, pin hole and piston ring.
Install piston rings in correct order, stagger their openings, and ensure retaining rings are firmly embedded.
Check the fit clearance after installation; rotate the crankshaft to ensure smooth operation.

(II) Daily Maintenance

Regularly check oil level and quality; replace oil and filter every 2000 hours, check every 500 hours.
Clean carbon deposits every 3000 hours with special cleaning agent.
Avoid long-term high-load operation; idle for 3-5 minutes before starting work.
Check piston status every 1000 hours; shut down and maintain in case of abnormal conditions.
Fully maintain the engine before long-term shutdown to prevent rust and corrosion.

(III) Common Fault Handling

Slightly scratched pistons can be repaired by special grinding tools; replace pistons if there are cracks, ablation or severe wear (wear over 0.15mm or cylindricity error over 0.05mm); repair or replace if the fit clearance between piston pin and hole is too large (over 0.015mm).
